Working principle

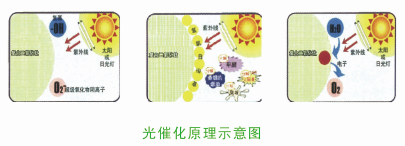

The composite photocatalyst foam metal tip nanocomposite technology integrates nano photocatalyst materials and excellent properties of foam nickel, and evenly loads a certain amount of nano TiO2 on the foam nickel substrate. A kind of supported Photocatalytic Functional material has been obtained. Because of its unique three-dimensional network structure, foamed nickel can be used as an excellent photocatalyst carrier, and nano TiO2 loaded on its surface. So far, it is the most widely used photocatalyst. It has broad application prospects in the degradation of organic pollutants in wastewater, removal of harmful inorganic gases and air purification. TiO2 The electronic structure is characterized by a full valence band and an empty conduction band. Electrons can be excited from the valence band to the free electrons formed by the conduction band when the light intensity is greater than the band gap energy (Eg=3.2ev, which is equal to the photon energy of 387.5nm wavelength), and a positive hole is formed in the valence band, forming electron hole pairs.

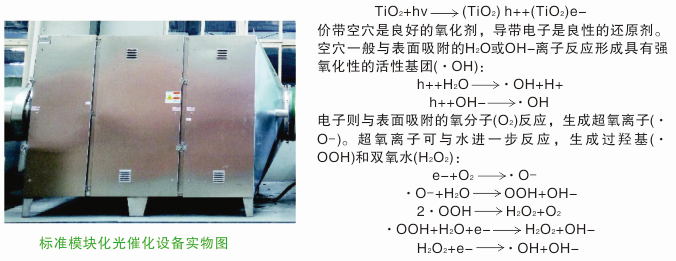

TiO2 Photocatalytic oxidation is active hydroxyl (OH) and other active oxidizing substances (O-, OOH, H). Two O Two The result of joint action. At TiO2 The surface generated OH group is highly reactive and has higher reaction energy than all kinds of chemical bond energy in organic compounds, plus O-, OOH, H2O2 The synergistic action of active oxidizing substances can rapidly and effectively decompose organic matter.
Equipment characteristics
The equipment has small footprint, convenient maintenance and low operation cost.
The equipment has low running resistance and can grasp the operation status of the equipment in time.
The efficiency of management is high, which can satisfy the environment of using non conditional gases.
The consumables in the equipment can be reused, and the shape of the equipment can be designed according to the requirements of the site.
Three dimensional mesh structure, large specific surface area, good permeability, a certain intensity, easy processing and installation, small pressure drop;
The equipment can be made by Q235 and SUS304, with high service life.
Application area
Municipal Industry: suitable for urban sewage treatment plants, sewage pumping stations, grille, sludge, sludge treatment and other generated H. Two S, mercaptan, thioether, ammonia and amine.
Factories and enterprises: it is suitable for the production of benzene, esters, alcohols, ketones, aldehydes, phenol gasoline and so on in spraying, rubber plant, tire factory, paper mill, food factory, tobacco, printing, breeding farm, chemical industry and production process.
